4GQ-1B Sugarcane Combine Harvester

4GQ-1B Sugarcane Combine Harvester

High adaptability

1. Adopting the integral frame beam that makes the machine’s center of gravity low, to provide high driving stability and strong adaptability to the slope of the plot( maximum of 15°sideways slope)
2. Suitable for row spacing greater than 1.1 meters;
3. Unique high-position unloading system improves efficiency and can be operated as a single machine to ensure lower rolling intensity on the ground, which is ideal for small and medium plots;
4. Hydrostatic drive transmission with CVT ( working mode and driving mode) for simple operation, travel speed of 0-25km/h.

High adaptability

1. Harvesting row of 1
2. Row distance ≥1100mm
3. Driving speed: 0-23km/h
4. Engine power rate: 133kW/180hp
5. Cummins Diesel engine( key aspects reached or exceed industry standard level)

Good reliability and comfort

1. Adopted electro-hydraulic control system with stable performance;
2. Key components are of high quality, easy to replace, easy to repair, easy to maintain, with low cost.

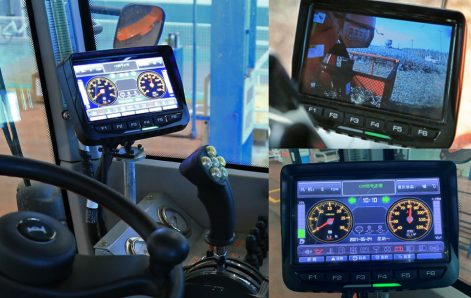

3. New design of the cab, with advanced built-in smart display and air conditioner, making operation easier;
4. Equipped with GPS tracking system, it can track and calculate the operation status and remote monitoring.

Maker	CHENHAN TECH
Model	4GQ-1B
Harvesting Type	Segment
Row Space（MM）	≥1200
Engine Power（kW）	133
Dimension（MM）	8030x2120x5070
Weight（Kg）	8100
Driving Type	Hydraulic drive
Driving Speed（kW / H）	0-28
Workload（T / H）	≥6.0
Fuel Consumption（L/T）	1.8-2.3
Impurity	≤5％
Root Break Rate	≤5％
Land Adaptability	Slope≤13％
