Product

Focus on full solutions for the professional sugarcane planting industry

4GQ-1E Sugarcane Harvester

Chenhan Tech’s latest series, 4GQ-1E 190HP Sugarcane Combine Harvester offers power, comfort, and efficiency.

Product advantages and features

4GQ-1E Sugarcane Harvester

  1. Compact design with excellent maneuverability and reduced ground compaction;
  2. Harvesting row from 1.1m to 1.5m;
  3. Upgraded collecting, cutting, and extracting system, for reduced cane loss, and increased productivity;
  4. Large, premium cab integrates the latest technology: digital color display monitor, side control panel with multi-function control lever, AC, GPS, radio, surround cameras, and front-rear high-luminosity lights;
  5. First of all, maintenance is simple. After that, the comfort of the operator. Second, provide a good view. Therefore, the operator remains relaxed and safe during long hours of work.Sugarcane Harvester manufacturer;Sugarcane Harvester manufacturer

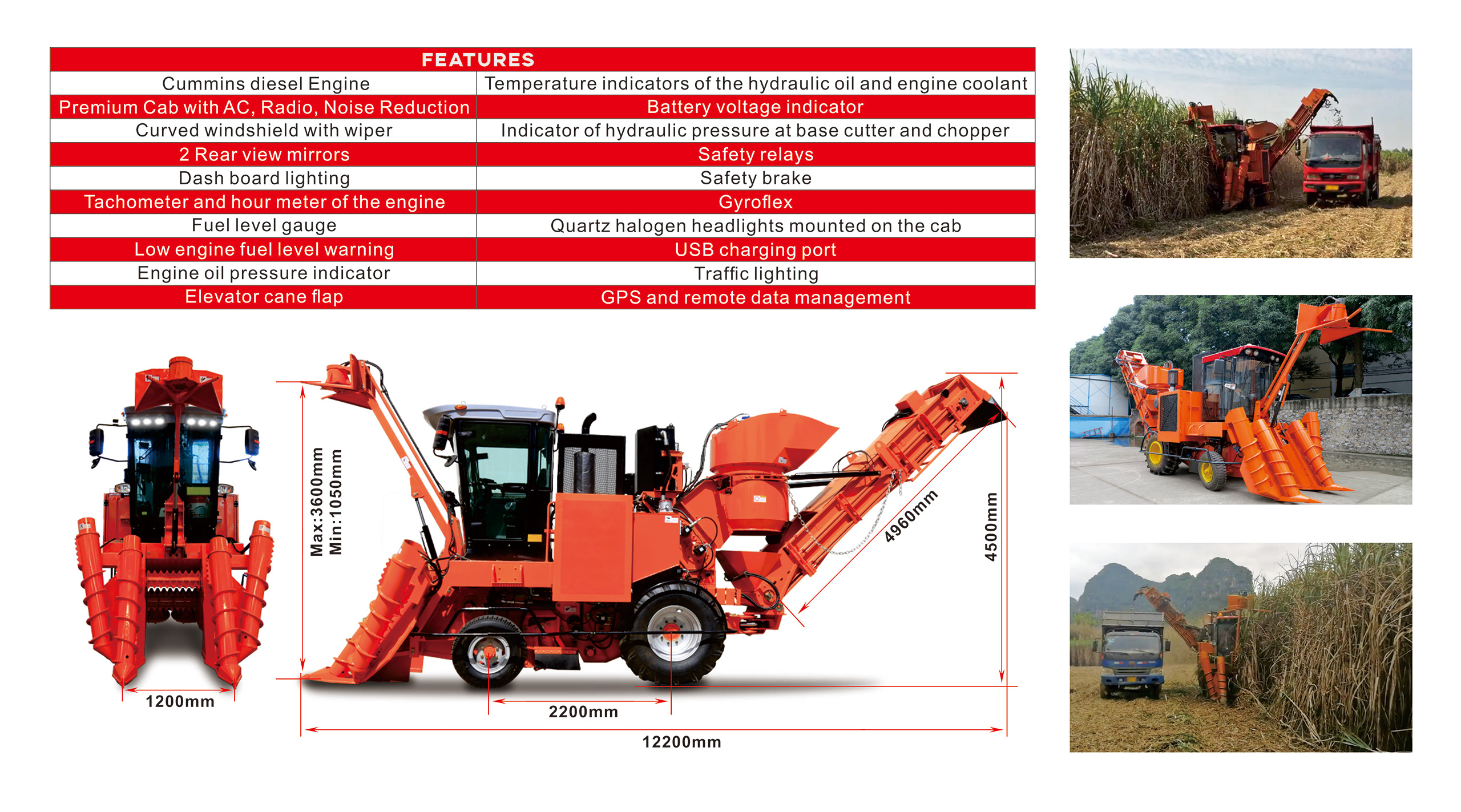

Model Description

Maker CHENHAN TECH
Model 4GQ-1E
Drive Type Self-propelled RWD
Max Operating Dimension (mm) 12200 x 2560 x 4500
Weight (kg) 8500
Wheel Base (mm) 2200
ENGINE
Make Cummins
Fuel Type Diesel
Engine Power (kW/hp) 140/190
RPM 2200
Cylinder 6
Aspiration Turbo, After-cooler
TRANSMISSION
Type Hydrostatic
Travel Speed(km/h) 0-20
CAPACITY
Fuel Tank(L) 213
Hydraulic oil tank(L) 220
TYRES
Front Tyres 10.5/65-16
Track Width(mm) 1650
Rear Tyres 16.9-28
Track Width(mm) 1500
TOPPER
Height Range (mm) 1050~3600
Height Adjustment Hydraulic
CROPE DIVIDER
Distance between the points (mm) 1200
Spiral Angle (°) 30
Height adjustment Hydraulic
BASE CUTTER
Drive Hydraulic and reversible
Number of Discs 2
Number of Blades 10
Distance between center of discs (mm) 535
Space to ground(mm) 0  ~ 262 (adjustable)
ELEVATOR
Floor Width(mm) 850
Length(mm) 4960
Slewing angle (°) 170
Max Unloading Height(mm) 5000

4GQ-1E Sugarcane Harvester Operation Video

  • Chenhan Tech sugarcane harvester with elevator

    4GQ-1E Sugarcane Harvester
