Product
Focus on full solutions for the professional sugarcane planting industry
The CH22A sugarcane field transfer loader is a transfer loader developed by Chenhan Technology specifically for sugarcane harvesting. It boasts advantages such as high load-bearing capacity, good maneuverability, low ground pressure, and no damage to the rootstock. Suitable for sugarcane field transfer and loading, it is an essential piece of equipment for sugarcane harvesting.
CH22A Sugarcane Field Transfer Loader:
1.Specially matched with hopper-type sugarcane harvesters, with material receiving and transfer functions.
2.Equipped with an 80hp engine delivering powerful performance.
3.High-position chassis design delivers excellent field trafficability.
4.Large-capacity lifting hopper for high working efficiency.
5.Lifting height can meet the requirements of various transport vehicles.

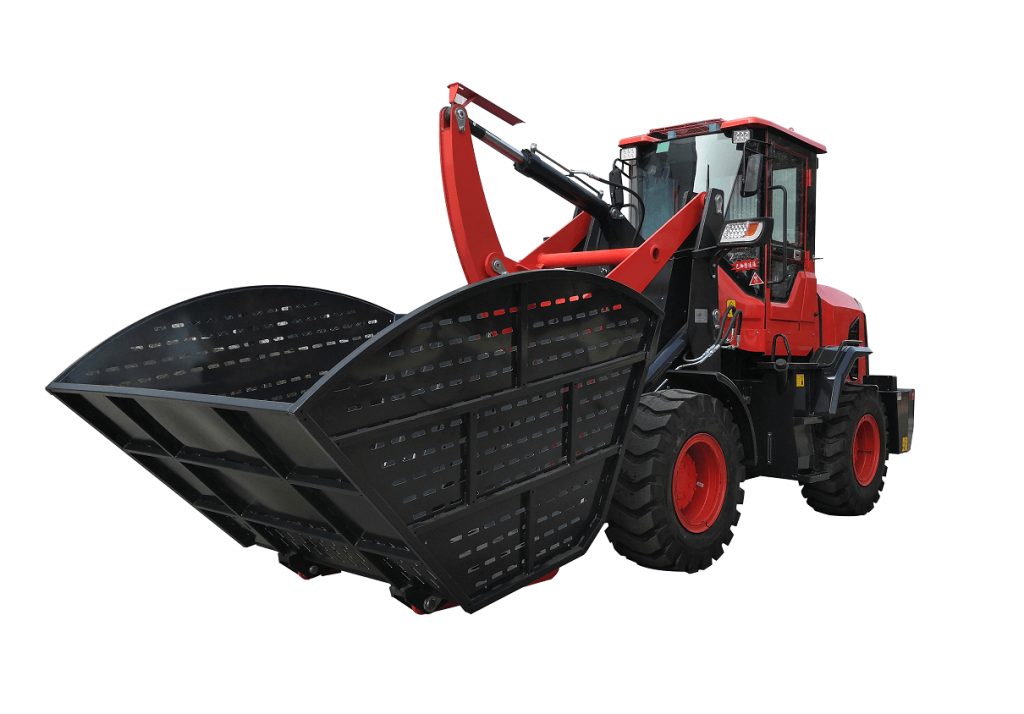

CH22A Field collection and handling machine
Technical Parameters
| Item | Unit | Parameter |
| Model | / | CH22A |
| Type | / | Self-propelled wheeled sugarcane trailer with lift-discharge hopper |
| Dimensions (L*W*H) | mm | 6940*2308*2930 |
| Power | kW | 59 |
| Rated speed | r/min | 2400 |
| Minimum turning radius | mm | 4800 |
| Weight | kg | 5650 |
| Rated loading mass | t | 1.3 |
| Driving brake type | / | Hydraulic brake |
| Total volume of collection compartments | m³ | 4.38 |
| wheelbase | mm | 2380 |
| Front wheel track | mm | 1500 |
| Discharge height | mm | 3900 |
