Focus on full solutions for the professional sugarcane planting industry
Why Choose Chenhan
1.Professionally designed for sugarcane planting on hilly and mountainous areas (closs-slopes&along-slopes), featuring strong terrain adaptability.
2.The rear axle adopts an independent suspension system, combined with self-developed patented automatic leveling technology, enabling harvesting on lateral slopes of up to 15°.
3.Excellent trafficability and self-rescue performance on complex terrains.
4.Electro-hydraulic control system with multiple selectable operation modes, supporting one-touch operation.
5.Suitable for slope field operation with planting row spacing ≥0.9 m.

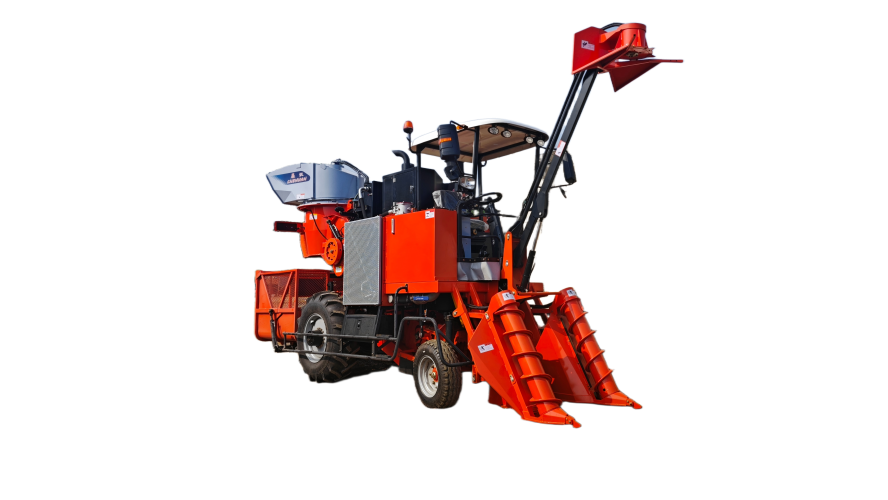

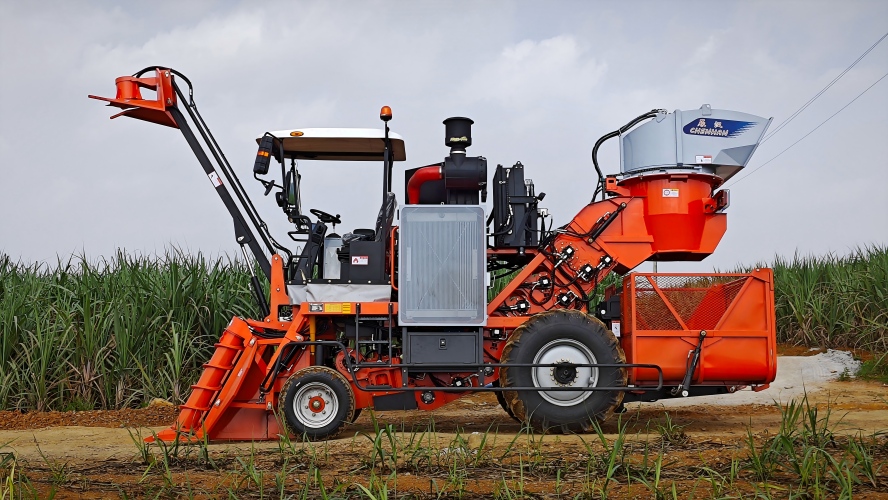

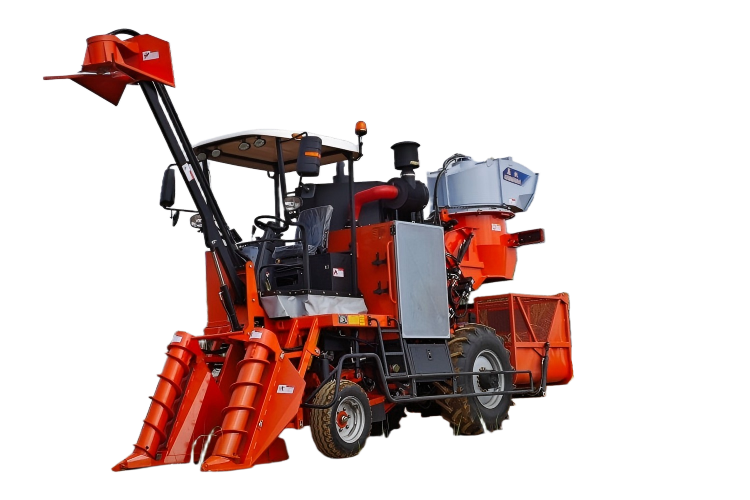

CH300B Sugarcane harvester
Technical Parameters
| Item | Parameter |
| Structural style | Self-propelled |
| Harvesting methods | Segmented style |
| Harvest rows(Row) | 1 |
| Suitable for row spacing （m） | ≥1.1 |
| Matching power type | DFH LR4M175-40E diesel engine |
| Rated power of matching power （kW） | 128.6 |
| Rated speed of matching power （r/min） | 2200 |
| Dimensions （mm） | 7350×2120×3470 |
| Travel mode | Wheeled |
| Travel transmission type | Hydraulic |
| Maximum driving speed (km/h) | 18 |
| Net working hour productivity （hm2/h） | ≥0.15 |
| Rated feeding amount （kg/s） | 3.5 |
| Total machine mass (kg) | 6900 |
| Minimum ground clearance (mm) | 280 |

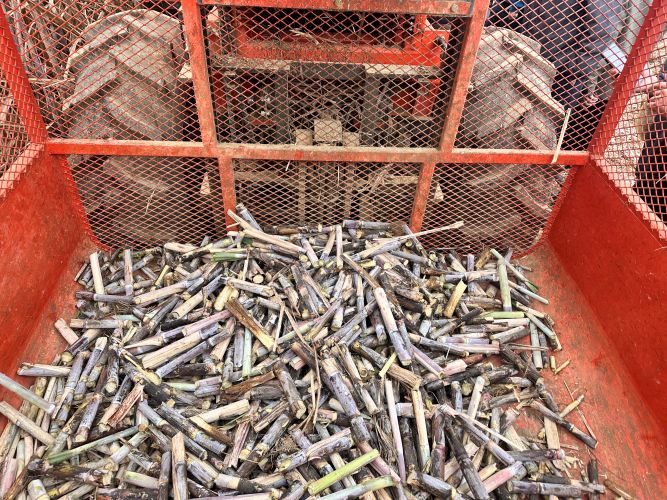

| Sugarcane collection (unloading) device | hopper |
| Maximum collection capacity of sugarcane collection device (kg) | 1070 |
| Specifications of front wheel tires | 10.5/65-16 |
| Front wheel track (mm) | 1580 |
| Quantity of front wheel tires(piece) | 2 |
| Specifications of rear wheel tires | 14.9-24 |
| Rear wheel track (mm) | 1510 |
| Quantity of rear wheel tires(piece) | 2 |
| Lateral adjustment angle of the body(º) | 15 |
