Focus on full solutions for the professional sugarcane planting industry
1.Multi-functional sugarcane transfer vehicle, capable of both field collection and road transportation.

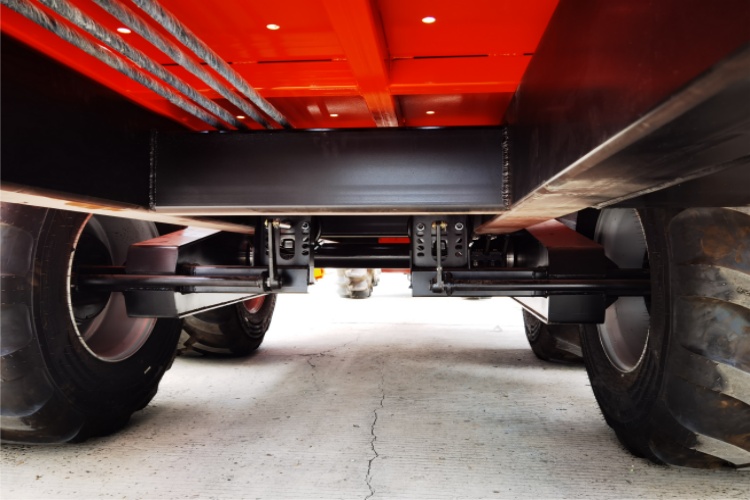

2.Axle suspension axle ensures stable and safe travelling.
3.Reinforced tubeless tires with long service life.
4.Independent hydraulic system for high-position unloading.
5.Air-assisted braking system, safe and reliable.
CH20A Self-offloading Transfer Vehicle Specifications
| CH20ASugarcane Transporter Technical Parameters | ||||
| Item | Unit | Parameters | ||
| Complete Vehicle |
Model | / | CH20A | |

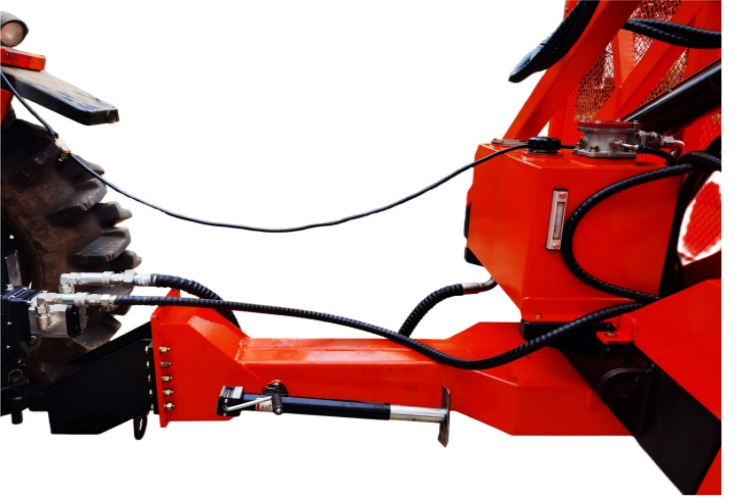

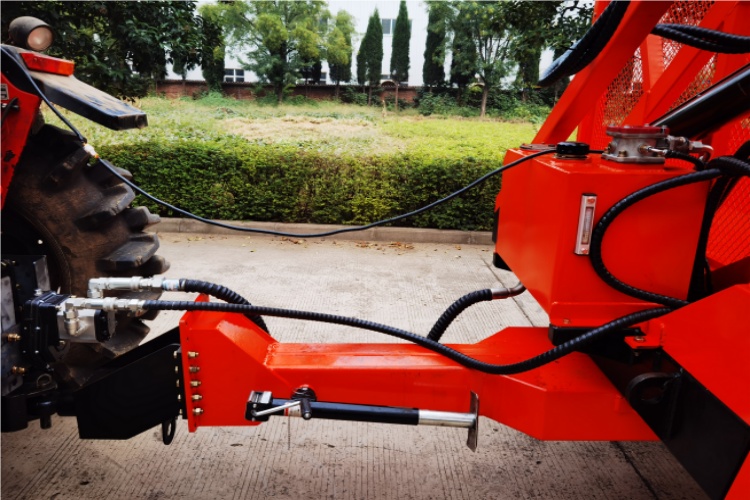

| Hitching Method | / | Towing Hitch | ||
| Dimensions | Length | mm | 5570 | |
| Width | mm | 3030（widest upper part） | ||
| Height | mm | 3800 | ||
| Weight | kg | 5200 | ||
| Payload Capacity | kg | 6000 | ||
| Effective Loading Area | m² | 15 | ||
| Hopper | Discharge Height | mm | 4400 | |
| Discharge Angle | / | ≥40° | ||
| Axle Configuration |
Type | / | Tandem Axle (Suspension Type) | |
| Axle Spacing | mm | 1460 | ||
| Wheel Track | mm | 2100 | ||

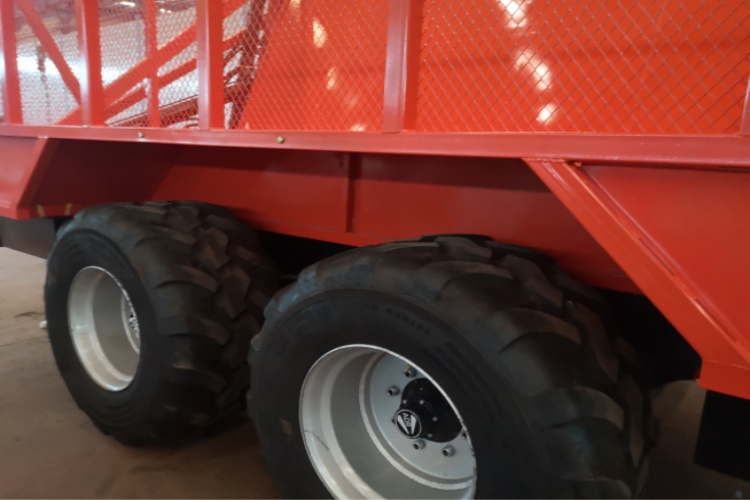

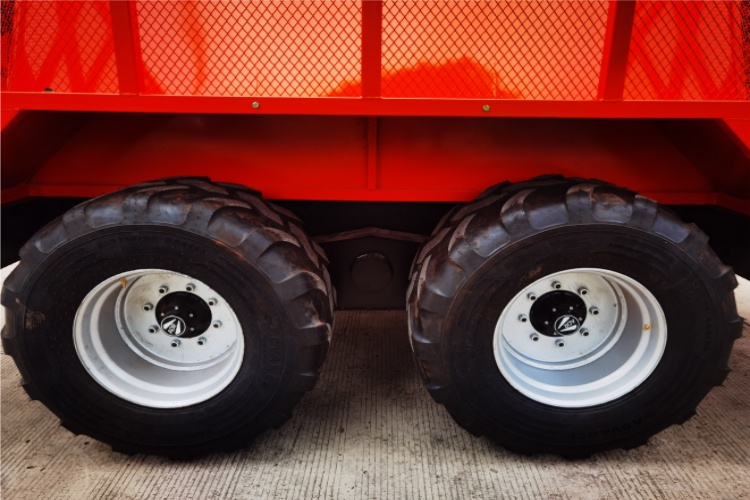

| Tires | Model | / | 500/50R17 | |
| Quantity | / | 4 | ||
| Discharge System |
Type | / | Side Discharge | |

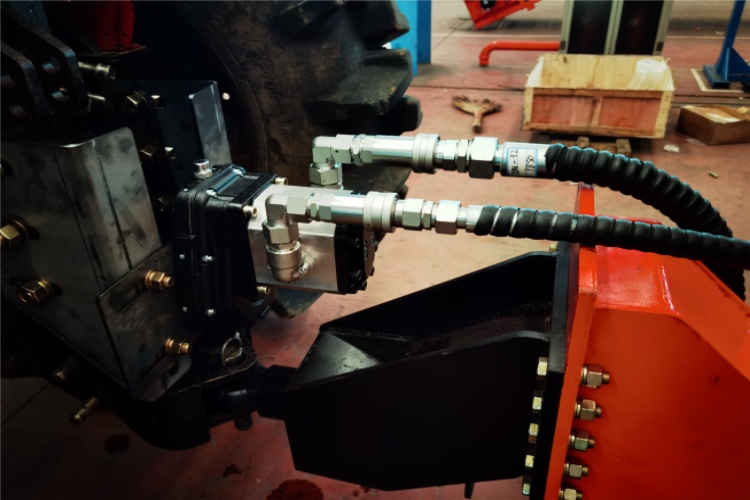

| Hydraulic System |
Cylinder | pcs | 4 | |
| Gear Pump | CBN-F550 | |||
| Oil Tank Capacity | L | 100L | ||
| Matching Power Unit |
Type | / | Air Brake | |
| Brake Discs | pcs | 4 | ||
| Matching Power Unit |
Type | / | Wheel Tractor | |
| Model | / | 1004 or higher | ||
| Power | kW | ≥73.5 | ||

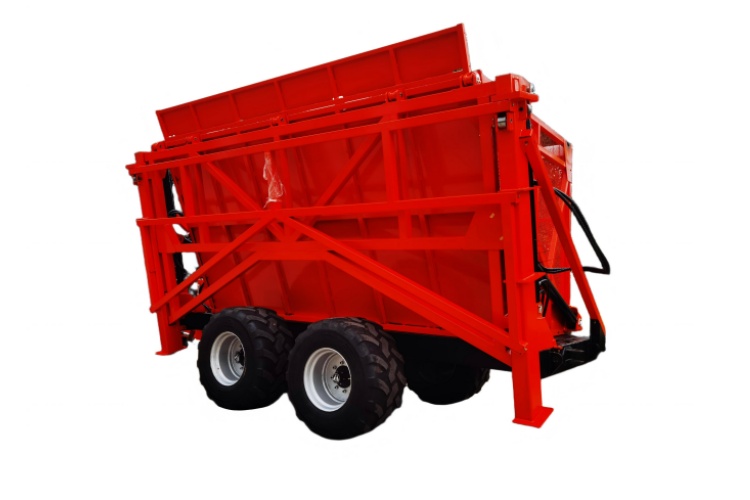

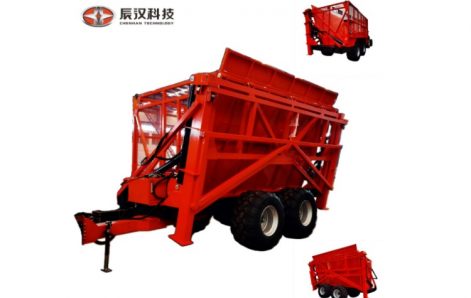

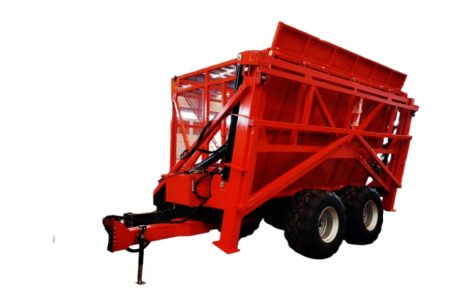

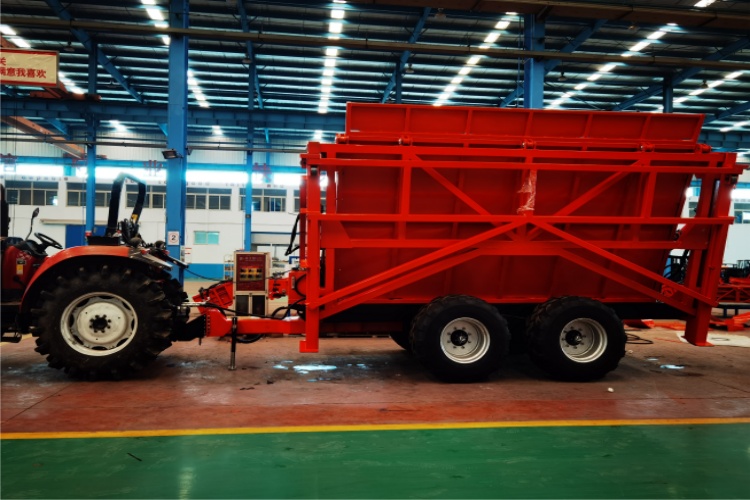

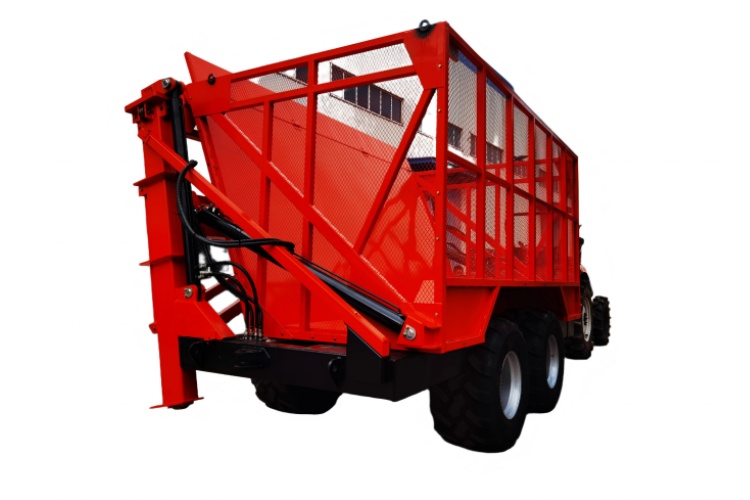

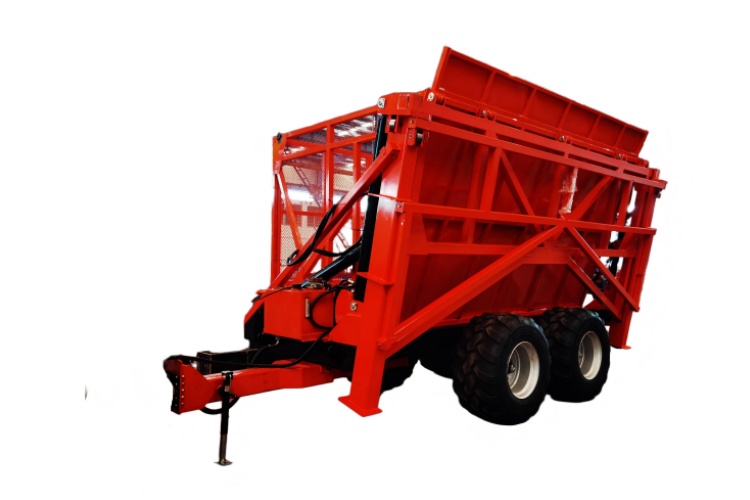

CH20A self-unloading sugarcane transfer vehicle
CH20A Self-unloading Transfer Vehicle – Working Video
