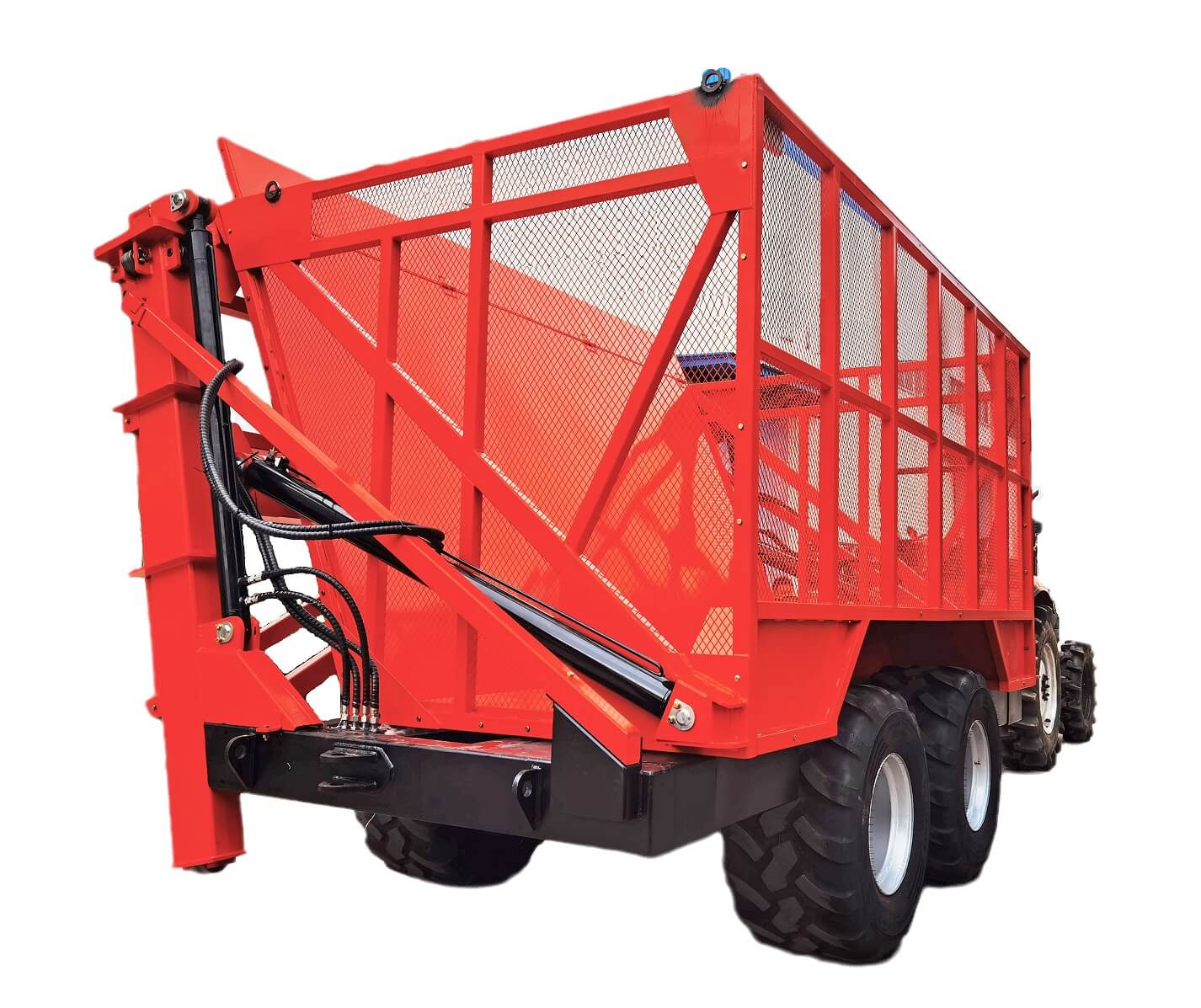

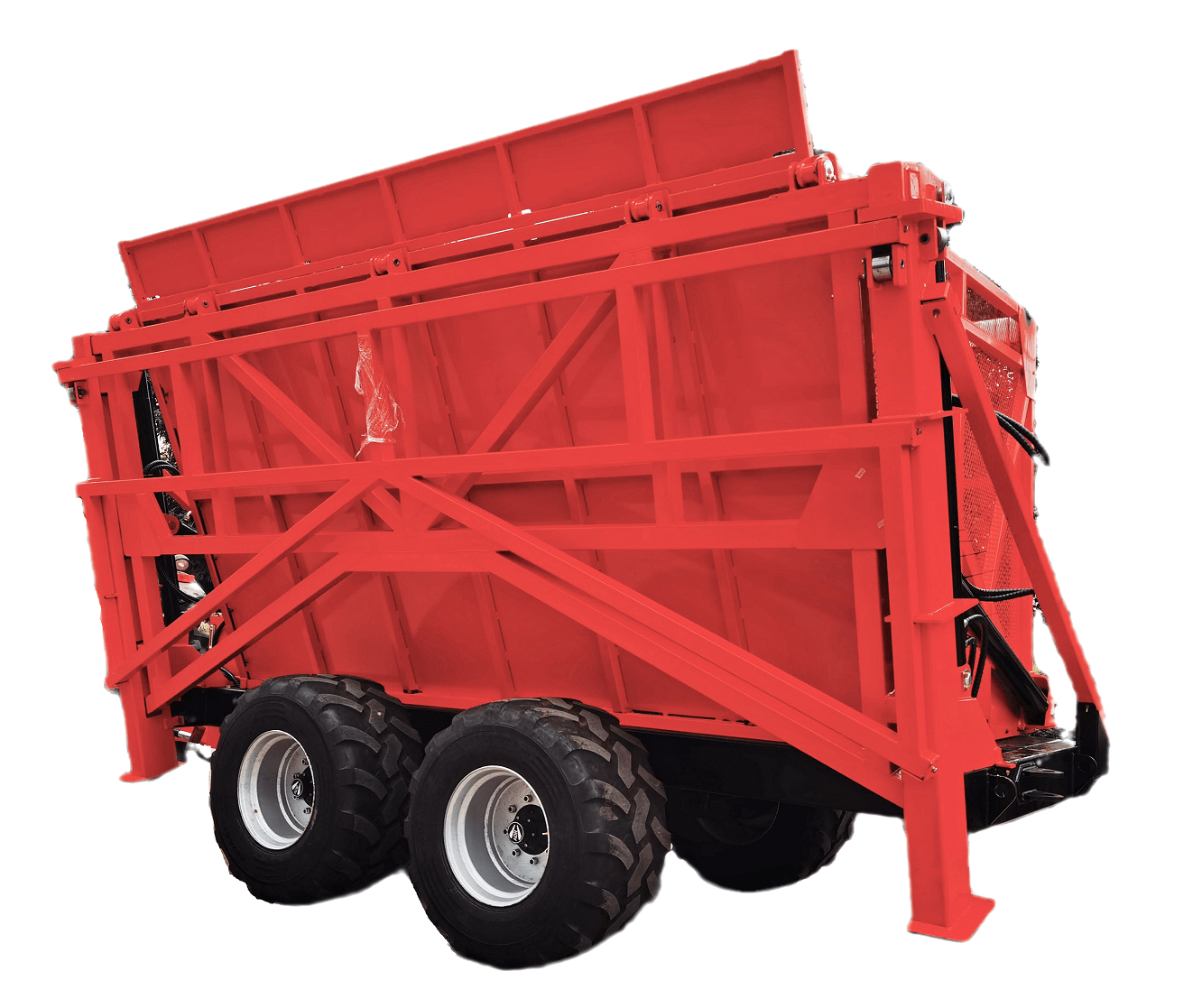

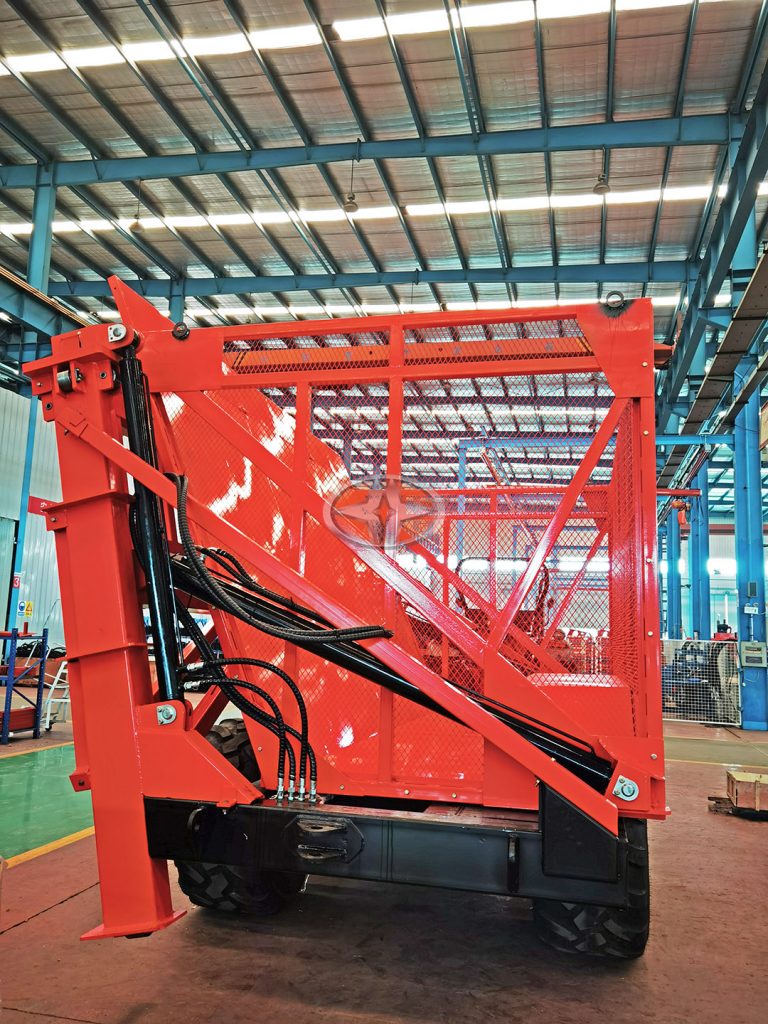

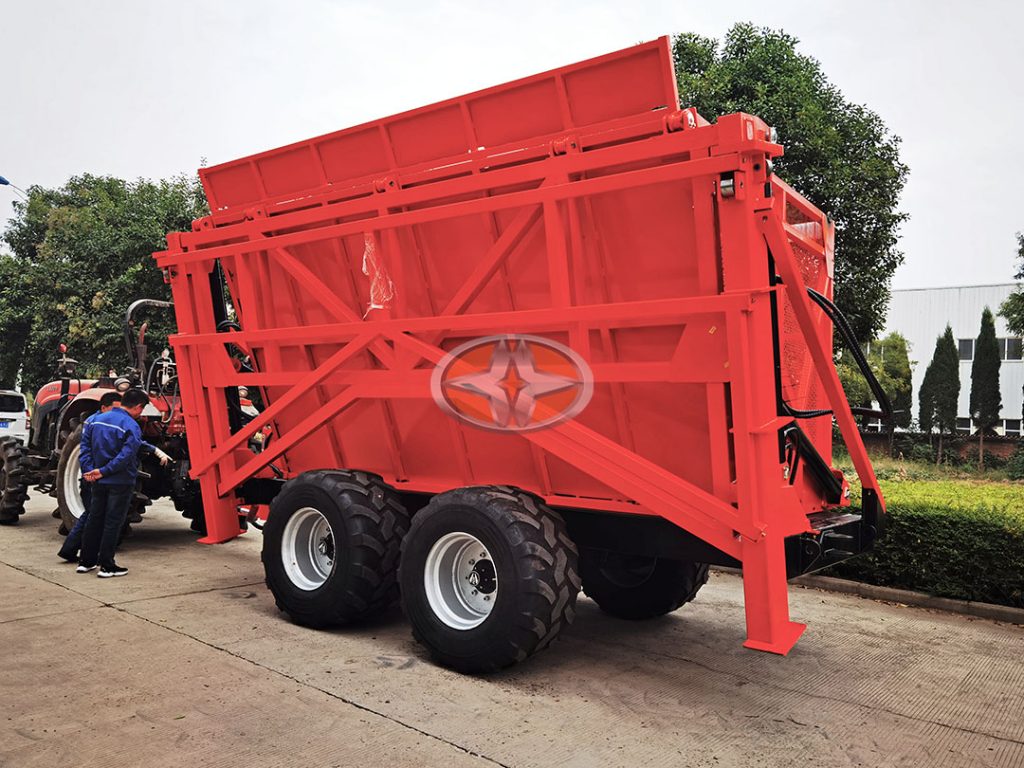

KF-8B Sugarcane Self Tipping Trailer

KF-8B Dump Sugarcane Transport Trailer is a sugarcane transporter specially developed by Chenhan Technology. It has its own hydraulic station, strong carrying capacity, high reliability, and automatic cane unloading. Easy to operate, it is a special trailer for sugarcane transportation.

Chat Online Leave Message

Product advantages and features

chenhan tech 7ygs sugarcane dump trailer

KF-8B sugarcane transportation trailer

STRUCTURE: Super-strengthened with double-tube steel profiles. However, the loading trolley also consists of double tubular steel profiles. And coated with metal plates. This allows for better visualization of loading and smooth unloading directions. Plus, it has 5 tilt hinges.

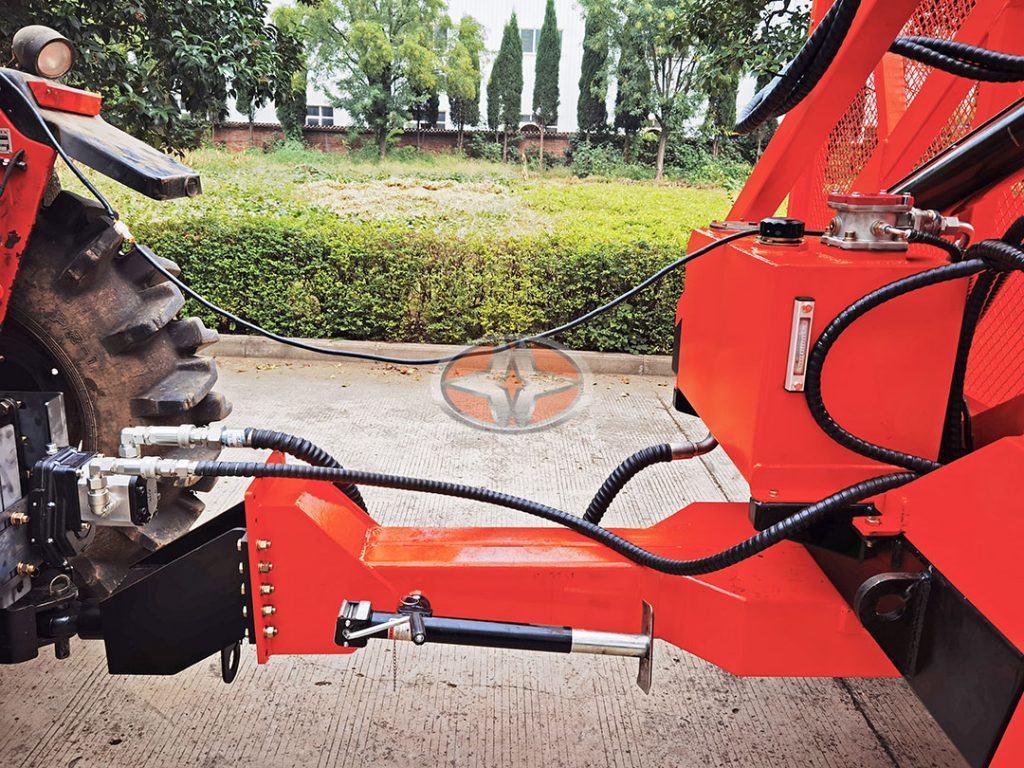

HYDRAULIC CONTROL PANEL: Display for easy coupling and easy view. Hoses 3/4" and standardized terminals.
HEADER: Decentralized to avoid the the planting rows.
OPTIONAL: Movable header, adjustable for fixing the positions, central or decentralized.

Model Description

Model			KF-8B
Overall	Linkage Method		Trailer towed
	Dimension	Length (mm)	7300
		Width (mm)	2780
		Hight (mm)	3450
	Weight (kg)		5000
	Capacity (kg)		8000
	Volume (m²)		20
	Discharge Height (mm)		4350
	Discharge Angle		≥39°

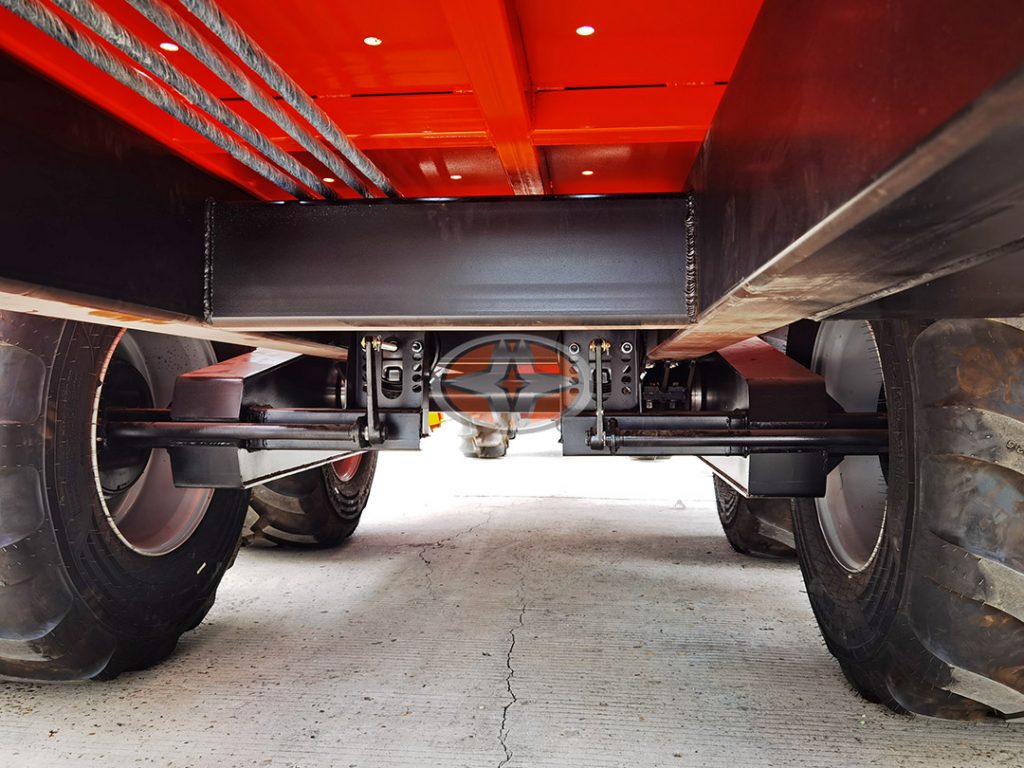

Axle form	Type		Dual axis (suspended)
	Wheel Base (mm)		1460
	Wheel Track (mm)		1900
Tire	Model		550/60-22.5
	Number		4
Unloading	Type		Side discharge
Cylinder	Number		2
	Volume (L)		52 (two sets）
